| MILspec：MIL-DTL-D38999 | Shell material; aluminum alloy/stainless steel/titanium alloy/composite materials, etc. |
| Gender:Plug | Contact material: copper alloy plating |
| Mating Cycles:Greater than 500 | Operating current: 5V |
| Connector type: circular electrical connector | Salt fog;1000 hours |
| Highlights:MIL-DTL-D38999 round electrical connector aviation plug | |
| Highlights:MIL-DTL-D38999 Threaded Quick Connect Electrical Connector | |
| Highlights:MIL-DTL-D38999 Small size, light weight, high contact density | |
| Packaging Details: Standard Export Packaging | Delivery time:1-4 weeks |
| Payment method: | Supply capacity: 100,000 |
KAIDA MIL-DTL-D38999 Series 3 Standard, D38999/26KC26SN Three-thread quick connection with anti-loose mechanism. Small size, light weight, high contact density, and with electromagnetic shielding function, contact can be removed, pin anti-oblique insertion. It has high strength vibration characteristics under high temperature, suitable for use in bad sand and wet occasions. 12#16#20#contact specifications hole position can be assembled fiber optic accessories, 12#10#8#contact specifications hole position can be assembled coaxial, shielding contacts with stainless steel shell, titanium alloy shell, aluminum alloy shell, and a variety of coatings. The product is used for circuit signal connection, product application fields include UAV, warship, aerospace, radar, oil, natural gas oil, military and civilian vehicles, submarines, aircraft, automation manufacturing, wind power generation, robots, medical equipment and other industries, with high anti-vibration and anti-impact ability, can withstand extreme high temperature, humidity and high altitude harsh environment. The MIL-DTL-D38999 connector offers excellent reliability durability performance and is the ideal solution for reliability applications. Complying with stringent quality standards, this connector finger provides reliable and secure connections for a wide range of applications.

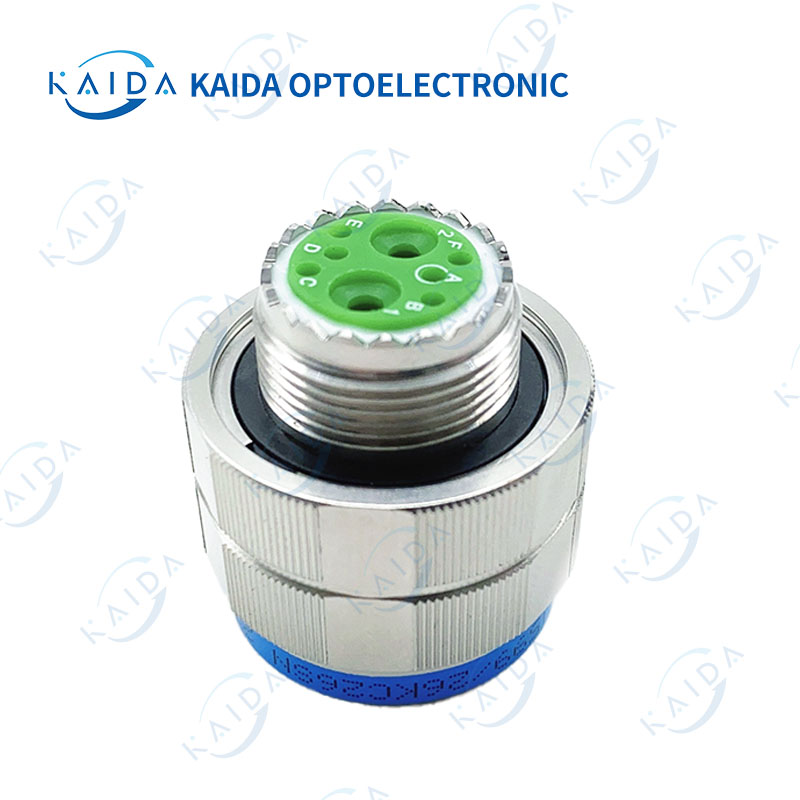

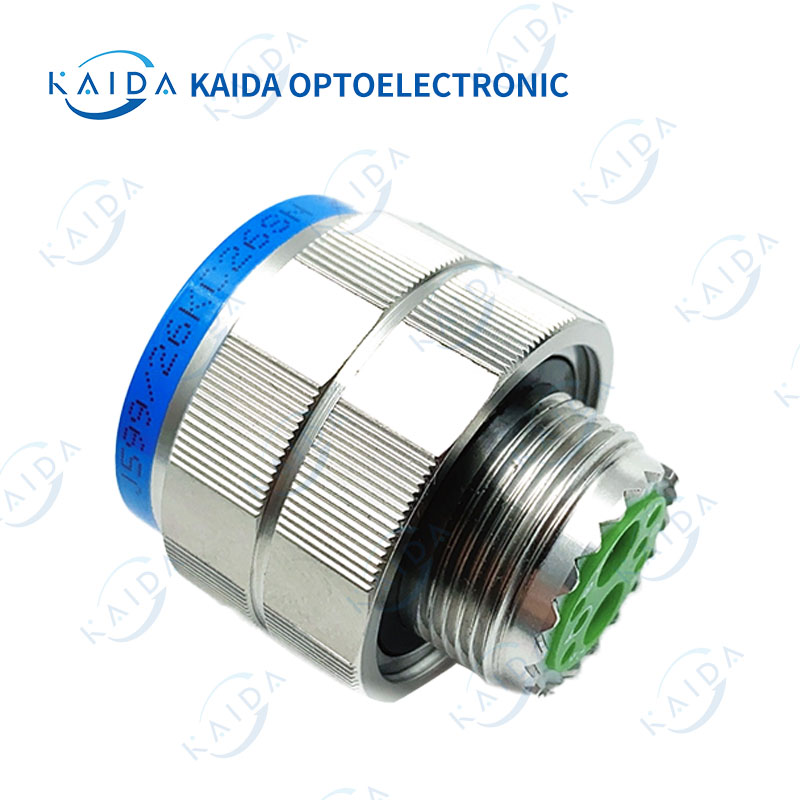

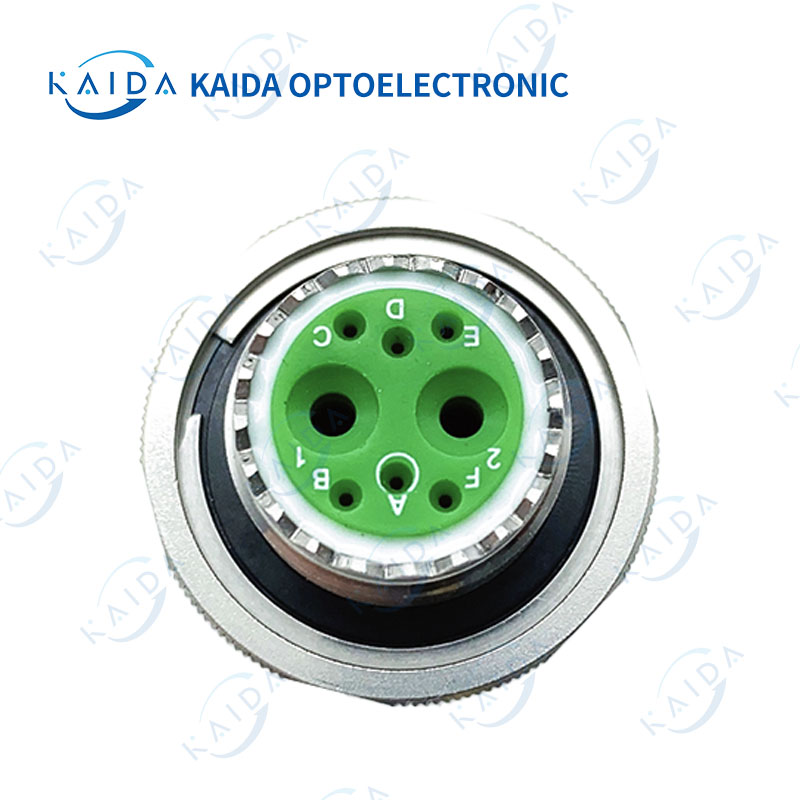

Product Name: D38999/26KC26SN
MIL-DTL-D38999 Aerial Plug Connector
Product Specification:MIL-DTL-D38999
Part Number: D38999/26KC26SN
Type: Shielded Plug
Operating Temperature: -65 ℃----175 ℃
| Product working temperature: -60℃~175℃ | Acceleration: frequency 10~2000Hz acceleration |
| Rated operating current: 240A | Mechanical life: more than 500 times |
| Insulation resistance: ≥5000MQ | Damp heat: perMIL-DTL-D38999: 24 hours 10 cycles |
| Liquid resistance: resistant to a variety of fuels, coolants, solvents | Salt spray: 1000 hours |
| Vibration: frequency 10~2000Hz acceleration 196m/s2-impact: acceleration 735m/s2 | Seal:MIL-DTL-D38999 Low Pressure Immersion Requirements |
| Rated voltage: 500V | Impact: acceleration 735m/s2 |
KAIDA D38999/26KC26SN connectors comply with MIL-DTL-D38999 standards and are ideal for many industrial applications. It is designed to withstand harsh environmental conditions and operates in the temperature range of -60 to +175°C. This socket connector is highly durable and reliable. D38999/26KC26SN connectors are suitable for a variety of applications, such as drones, warships, aerospace, radar, oil, natural gas oil, military and civilian vehicles, submarines, aircraft, automation manufacturing, wind power generation, robots, medical equipment and other industries, and industrial systems, computer systems, data acquisition systems, communication systems, control systems navigation systems and instrumentation systems. The connector is easy to install and provides excellent signal performance, making it a cost-effective solution for any application that requires a reliable and secure connection.
KAIDA connector is an advanced and reliable aviation plug connector. Model number D38999/26KC26SN. KAIDA MIL-DTL-D38999 can accept customized products and services in addition to conventional models.KAIDAconnectors can meet your needs.
MIL-DTL-D38999 Connector Technical Support and Service
MIL-DTL-D38999 connectors provide highly reliable electrical connections in harsh environments. Our technical support and services can help you get the most out of your products. technical support
Our technical support team can help you with any questions or issues regardingthe MIL-DTL-D38999 connector. We provide troubleshooting advice and technical guidance to resolve any product-related issues. Our technical support team is available 24 hours a day to answer your questions. product training
Our product training team will help you understand the features and specifications ofthe MIL-DTL-D38999 connector. We offer on-site and online training courses to help you get the most out of your products. Our product training team can tailor training courses to your needs and requirements. maintenance service
Our maintenance serviceprovides regular maintenance checks and repairs for your MIL-DTL-D38999 connector. Our maintenance team can detect any potential problems and fix them before they become a problem. We also provide regular maintenance checks to ensure your connectors are operating at peak performance.
Packaging and transportation of MIL-DTL-D38999 connectors
MIL-DTL-D38999 connectors are packaged in moisture-proof plastic bags with outer boxes sealed to protect against dust and moisture. The pouched product is then placed in a carton or other suitable container. The container is labeled with the product name, part number, and shipping address. Depending on the customer's requirements and the size of the order, the mode of transport can be air or land. The container must be marked with the product name, part number, and shipping address, as well as any special shipping information.
Instructions.
Q:What is the brand name of the MIL-DTL-D38999 connector?
A:MIL-DTL-D38999 connector brand name is KAIDA,
Q: What is theMIL-DTL-D38999connector model number?
A:MIL-DTL-D38999 connector model number is D38999/26KC26SN.
Q: Where isMIL-DTL-D38999 connector manufactured?
A:MIL-DTL-D38999 connector is manufactured in China.
Q: What are the benefits of usingMIL-DTL-D38999 connectors?
A:MIL-DTL-D38999 connector has excellent performance and durability, high reliability and low insertion loss
Q: What are the applications ofMIL-DTL-D38999 connector?
A:MIL-DTL-D38999 connector is widely used in military and aerospace fields, UAV, warship, aerospace, radar, natural gas oil, military and civilian vehicles, submarines, aircraft, automation manufacturing, wind power generation, robots, medical equipment and other industries
