| MILspec：MIL-DTL-83513 | Housing material; aluminum alloy/stainless steel |
| Gender:Socket | Contact material: copper alloy |
| Mating Cycles:500 | Current rating: 5A |
| Connector type: miniature electrical connector | Voltage rating: 500V |
| Highlights: High-speedMIL-DTL-83513 miniature electrical connector | |
| Highlights: RectangularMIL-DTL-83513 Micro Electrical Connector | |
| Highlight: Female rectangularMIL-DTL- 83513 | |
| Packaging Details: Standard Export Packaging | Delivery time:1-4 weeks |
| Payment method: | Supply capacity: 100,000 |

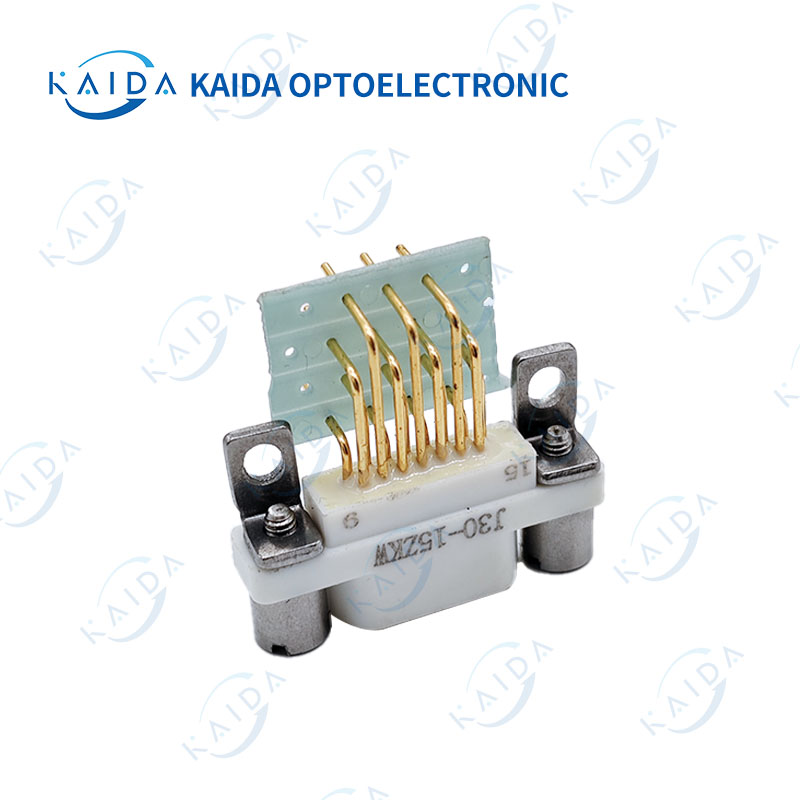

High Speed Connector Solution Rectangular connector conforms to MIL-DTL-83513 standard J30-15ZKW Socket Part Number: J30-15ZKW
MIL-DTL-83513miniatureDconnector is a female socket for electrical interconnection applications, can meet the stringent requirements of military and aerospace environments, it is a reliable connector, gold plated nickel plated contacts,500Vvoltage rating, 500 mating cycles, part number: J30-15ZKW
This connector is designed for excellent performance in a wide range of applications, including computer systems, data acquisition systems, communication systems, control systems navigation systems and instrumentation systems. It is a lightweight, cost-effective, easy-to-use solution with excellent electrical and mechanical properties. The connector has a robust construction, high vibration and shock resistance, and can withstand extreme temperatures, humidity, and harsh environments at high altitudes.
The MIL-DTL-83513 MiniatureD-Type connector offers excellent reliability and durability performance, making it an ideal solution for reliability applications. It is also ROHS compliant and certified to meet stringent quality standards, which means that the connector is designed to provide reliable and secure connections for a wide range of applications.
Product Name:MIL-DTL-83513 Mirco-D Connector
Product Specification:MIL-DTL-83513
Part Number: J30-15ZKW
Type: Socket
Operating Temperature: -55 ℃--+125 ℃
| Product working temperature: -55℃~125℃ | Acceleration: frequency 10~2000Hz acceleration |
| Rated working current: 5A | Mechanical life: 500 times |
| Insulation resistance: normal temperature ≥5000MQ-near-end crosstalk:100ps near-end crosstalk time is not less than 30dB | Characteristic impedance: 100±15Ω |
| Withstand voltage: 800V(normal temperature) | Near-end crosstalk: Near-end crosstalk shall not be less than 30dB within 100ps
|
| Vibration: Frequency 10~2000Hz Acceleration 196m/s2-Impact: Acceleration 735m/s2 | Transmission characteristics: 1.65Gbps transmission rate
|
| Contact resistance: ≤20mΩ | Impact: acceleration 735m/s2 |
KAIDA J30-15ZKW miniature D-type connectors comply with MIL-DTL-83513 standard and are ideal for many industrial applications. It is designed to withstand harsh environmental conditions and operates over a temperature range of-55 to +125°C. due to its house material, aluminum alloy, and coupling nut, that receptacle connector has a high degree of durability and reliability. The KAIDA J30-15ZKW miniature D connector is suitable for a variety of applications such as aerospace, military and industrial systems. The connector is easy to install and provides excellent signal performance, making it a cost-effective solution for any application that requires a reliable and secure connection.
The KAIDA Micro-D connector is a state-of-the-art and reliable socket-type socket. Model J30-15ZKW, made of copper alloy and brass with nickel-gold plated contacts, designed to operate at-55 to +125°C. This Micro-D connector from KAIDA is sure to meet your needs.
MIL-DTL-83513 Micro D Connector Technical Support and Service
MIL-DTL-83513 miniature D connector provides high reliability electrical connections in harsh environments. Our technical support and services can help you get the most out of your products. technical support
Our technical support team can help you resolve any questions or issues related to the MIL-DTL-83513 Micro-D connector. We provide troubleshooting advice and technical guidance to resolve any product-related issues. Our technical support team is available 24/7 to answer your questions. product training
Our product training team will help you understand the features and specifications of the MIL-DTL-83513 Micro-D connector. We offer on-site and online training courses to help you get the most out of your products. Our product training team can tailor training courses to your needs and requirements. maintenance service
Our maintenance service provides regular maintenance inspections and repairs for your MIL-DTL-83513 Micro-D connector. Our maintenance team can detect any potential problems and fix them before they become a problem. We also provide regular maintenance checks to ensure your connectors are operating at peak performance.
MIL-DTL-83513 Packaging and Transportation of Mirco-D Connectors
MIL-DTL-83513 Miniature D connectors are packaged in moisture-proof plastic bags with an outer box sealed to protect against dust and moisture. The pouched product is then placed in a carton or other suitable container. The container is labeled with the product name, part number, and shipping address. Depending on the customer's requirements and the size of the order, the mode of transport can be air or land. The container must be marked with the product name, part number and shipping address, as well as any special shipping information instructions.
Q:MIL-DTL-83513 What is the brand name for Mirco-D connectors?
A: MIL-DTL-83513 Mirco-D connector brand name is KAIDA,
Q: What is the model number of MIL-DTL-83513Mirco-D connector?
A:MIL-DTL-83513 Mirco-D connector model is J30-15ZKW.
Q: Where is the MIL-DTL-83513Mirco-D connector manufactured?
